Precision Locating & Alignment Components

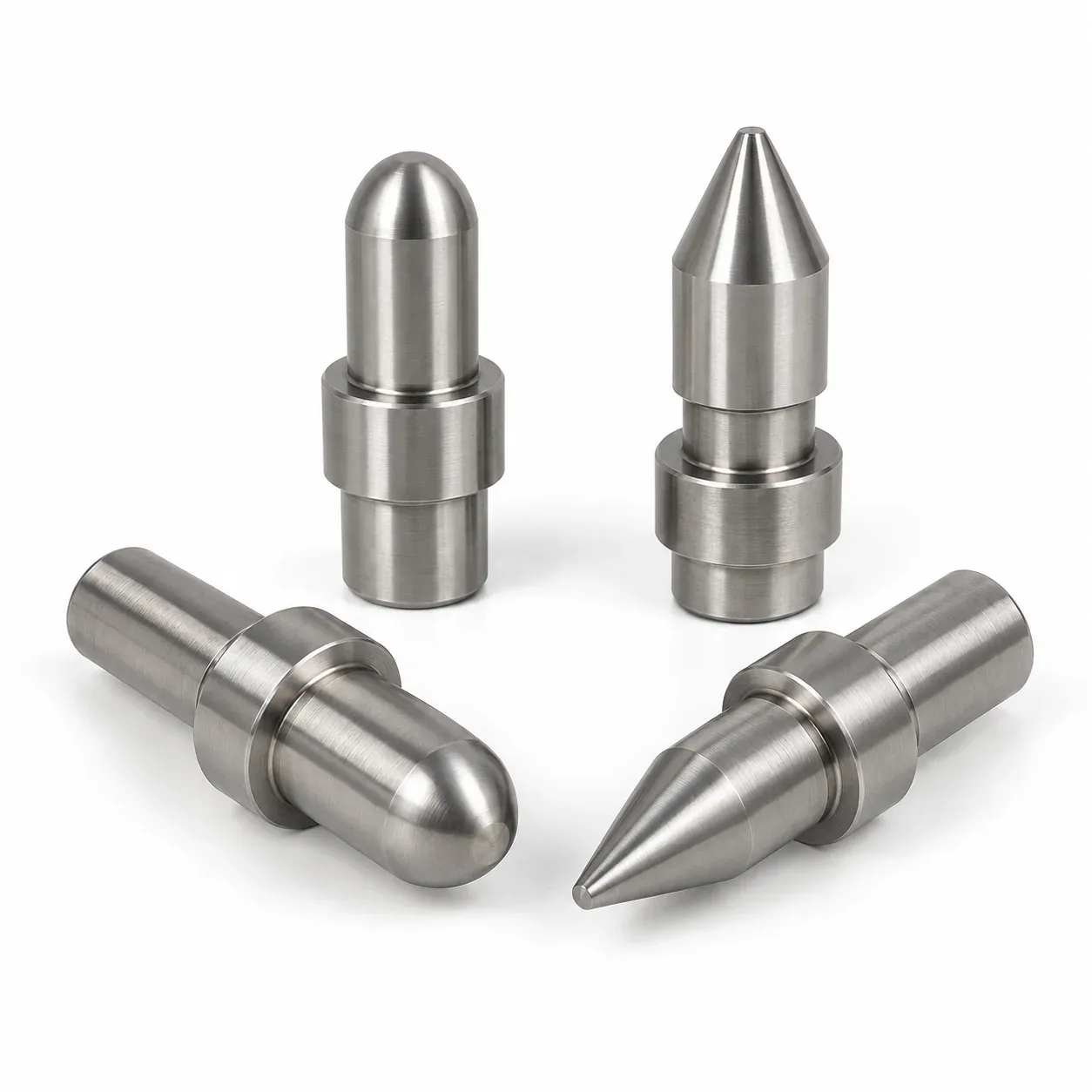

Bullet-Nose & Tapered Locating Pins
Lead-in locating components for applications requiring easier engagement, guided alignment and repeatable positioning.
PRODUCT RANGE
Precision Positioning & Locking Components
Explore precision components for locating, positioning, indexing, locking and quick-release applications in industrial automation, fixturing and machinery.
Precision Locating & Alignment Components
4 products
View product
Precision Locating & Alignment Components

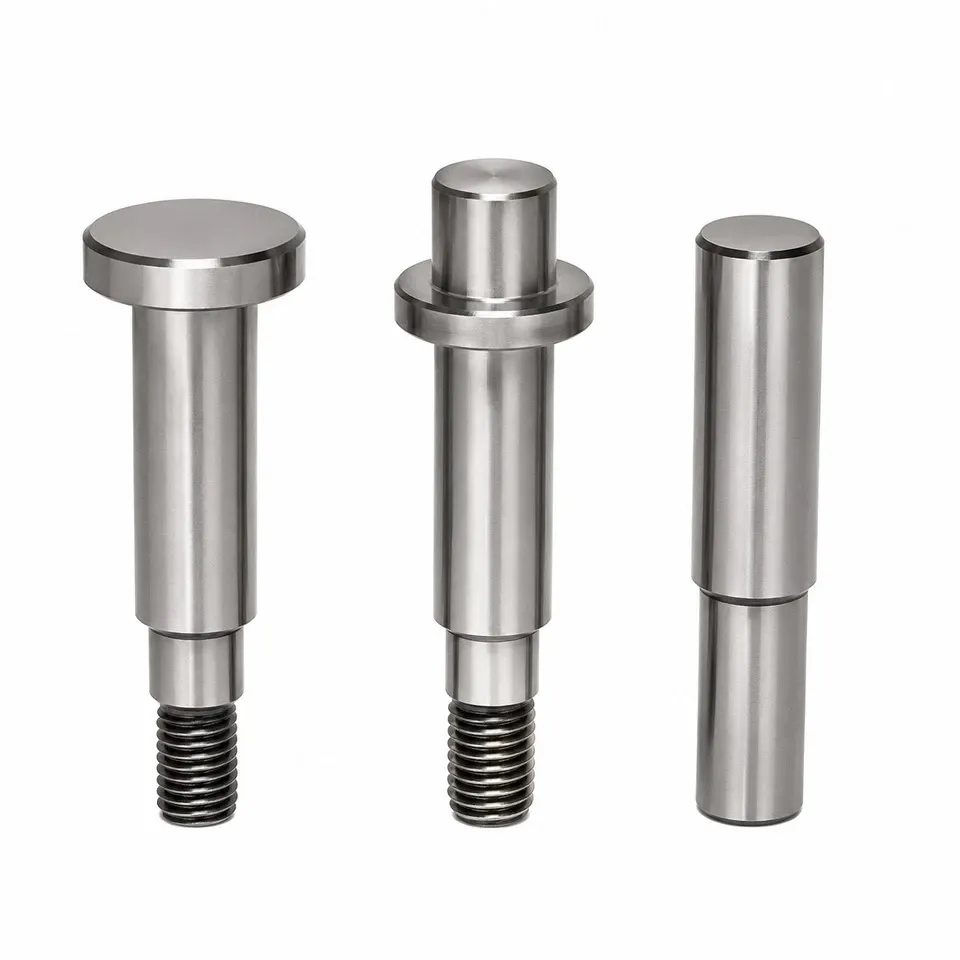

Alignment & Jig Pins
Alignment and jig pins provide removable locating and alignment points for fixtures, tooling and equipment interfaces requiring repeated assembly or positioning.
Precision Locating & Alignment Components

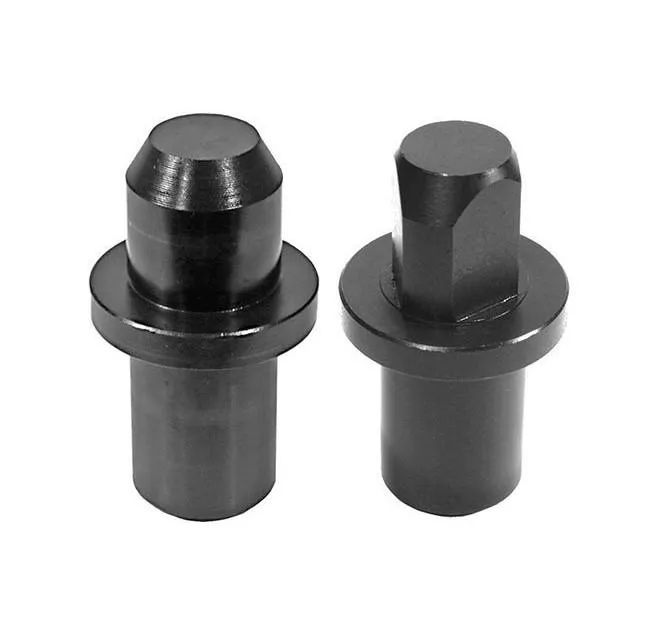

Round & Diamond Locating Pins
Complementary locating pin configurations used to position components accurately while helping avoid over-constraint in fixture and assembly applications.
Precision Locating & Alignment Components
Replaceable Locating Pins
Replaceable locating pins provide removable locating elements for fixtures and tooling where the locating component may need to be serviced, changed or replaced.
