Precision Locating & Alignment Components
Bullet-Nose & Tapered Locating Pins
Lead-in locating components for applications requiring easier engagement, guided alignment and repeatable positioning.
PRODUCT RANGE
Precision Positioning & Locking Components
Explore precision components for locating, positioning, indexing, locking and quick-release applications in industrial automation, fixturing and machinery.
All products
13 products
View product
Precision Indexing & Positioning Components
Cam-Action Indexing Plungers
Cam-operated indexing components for fast manual positioning and repeated adjustment in machinery, fixtures and automation applications.
Quick-Release & Locking Components
Quick-Release & Locking Pins
Mechanical locking and retention pins for applications requiring fast installation, removal or repeated adjustment.
Quick-Release & Locking Components
Heavy-Duty Ball Lock Pins
Heavy-duty ball lock pins provide removable positive locking for fixtures, equipment and machinery interfaces requiring frequent installation and release.
Precision Locating & Alignment Components
Alignment & Jig Pins
Alignment and jig pins provide removable locating and alignment points for fixtures, tooling and equipment interfaces requiring repeated assembly or positioning.
Precision Locating & Alignment Components
Round & Diamond Locating Pins
Complementary locating pin configurations used to position components accurately while helping avoid over-constraint in fixture and assembly applications.
Quick-Release & Locking Components
Ball Lock Pins
Ball lock pins provide quick, positive locking for removable and frequently adjusted components in industrial equipment, fixtures and automation applications.
Precision Bushings & Receivers
Receiver Bushings
Receiver bushings provide mating interfaces for mechanical locking and quick-change fixture systems, supporting repeatable engagement, positioning and component changeover.
Precision Indexing & Positioning Components

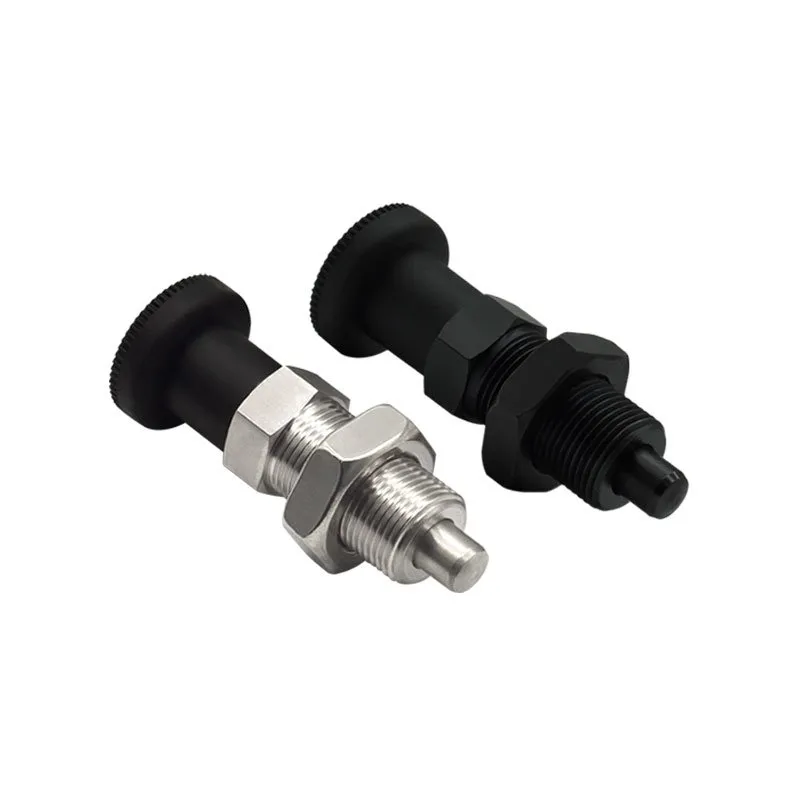

Precision Indexing Plungers
Indexing components used for controlled positioning, locating and repeatable adjustment in machinery, fixtures and automation equipment.
Precision Bushings & Receivers
Precision Locator Bushings
Matching locating interfaces used with precision pins to support repeatable positioning and controlled component alignment.
Precision Clamping Components
Low-Profile Edge & Side Clamps
Low-profile edge and side clamps secure workpieces from the side while helping keep the upper working area accessible for machining, assembly or inspection operations.
Precision Indexing & Positioning Components
Lock-Out Indexing Plungers
Lock-out indexing plungers allow the indexing pin to be retracted and held disengaged for applications requiring repeated adjustment, repositioning or changeover.
Page 1 of 2
