Precision Components for Fixtures, Automation & Machinery

Components for repeatable locating, positioning, retention and workpiece control in production fixtures and tooling. Relevant components include round and diamond locating pins, precision locator bushings, indexing plungers and low-profile clamps.

Mechanical positioning and locking components for adjustable stations, machine modules and automated equipment. Relevant components include indexing plungers, ball lock pins, quick-release locking pins and locating pins.

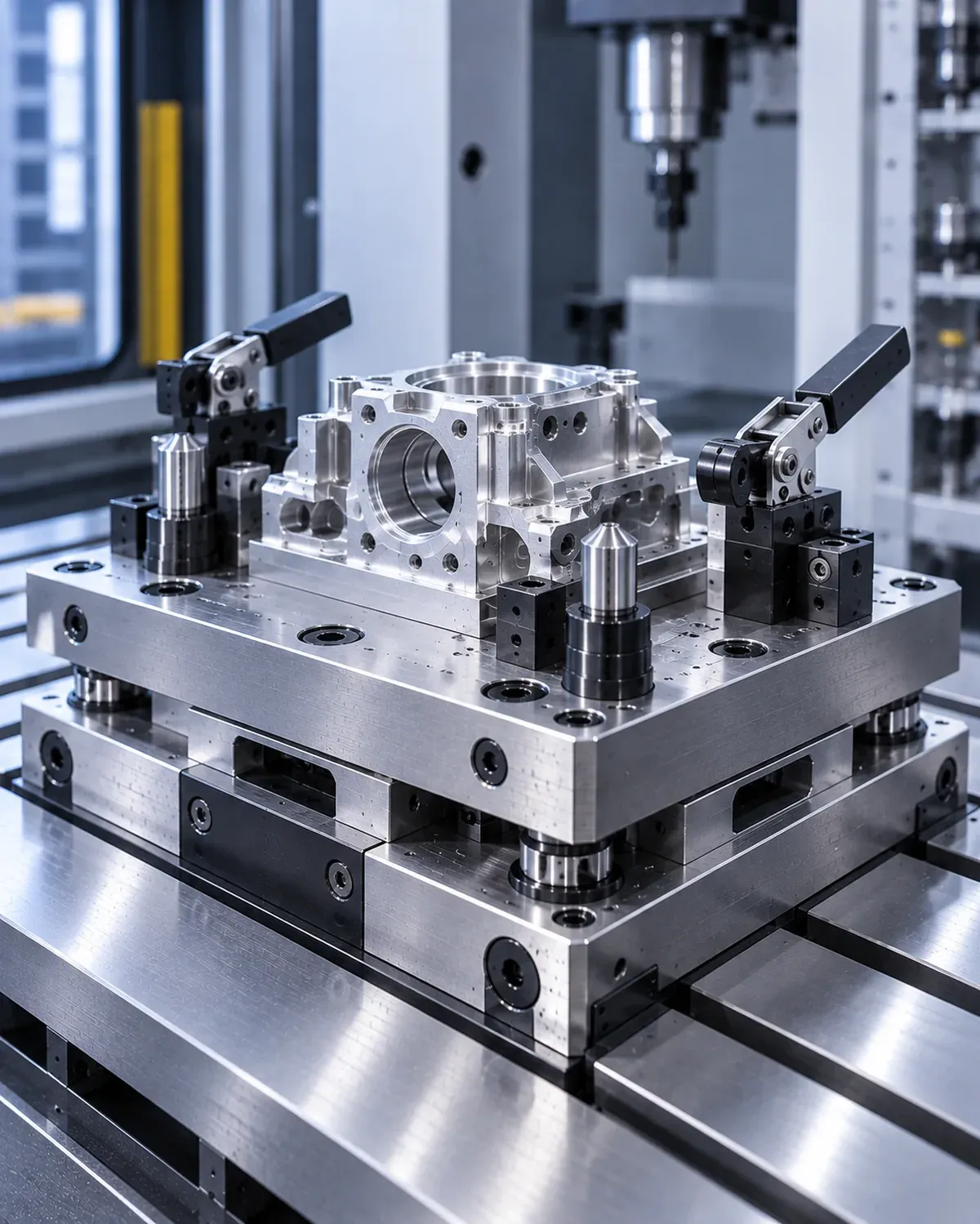

Quick-release and locating components for equipment interfaces, fixture changes and repeated setup adjustments. Receiver bushings apply where the compatible fixture locking system requires a mating receiver interface.

Components for controlled positioning, indexing and repeatable adjustment of machine and equipment elements. Relevant components include precision indexing plungers, cam-action indexing plungers, locating pins and locator bushings.

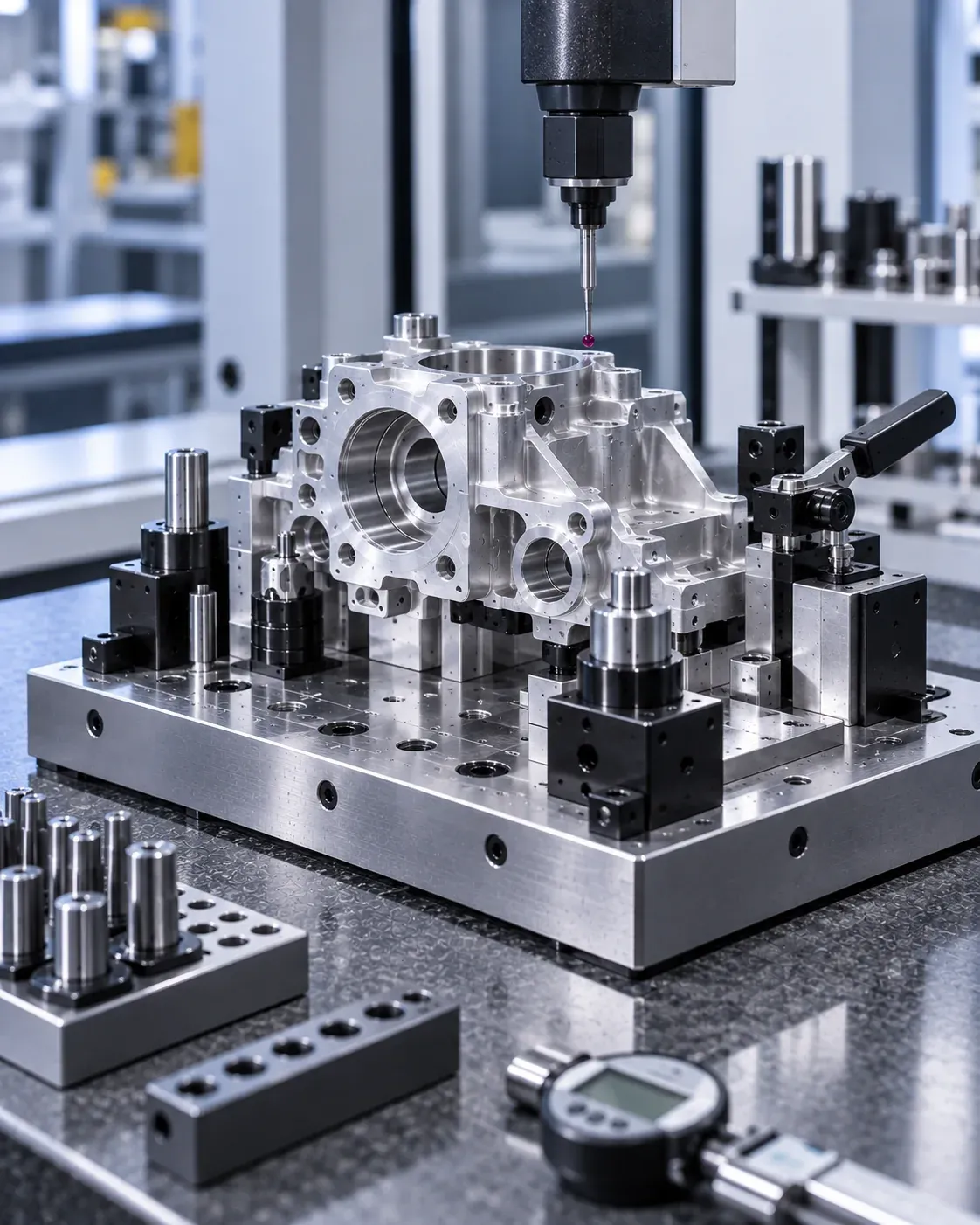

Locating, alignment and locking components for assembly fixtures, inspection tooling and repeatable part setup. Relevant components include locating pins, bullet-nose and tapered locating pins, locator bushings and selected locking components.
